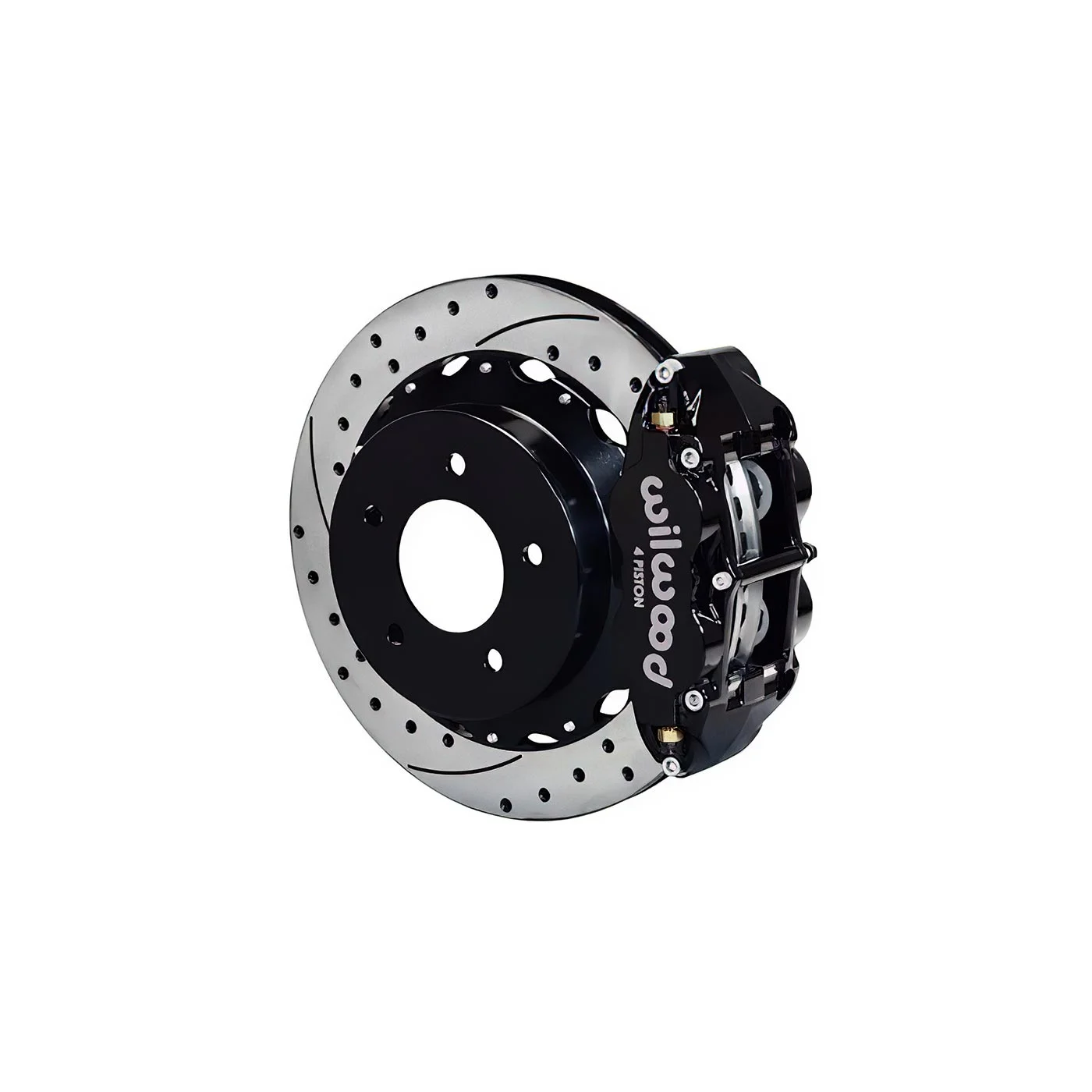

DB-1176 Wilwood Superlite 4R Achterremset met 12,8″ SRP-rotoren (OE-parkeerrem) 84-87

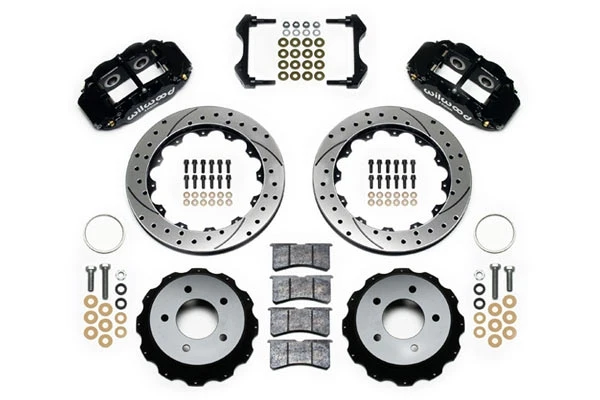

Wilwood’s Superlite 4R “Big Brake” kits use race technology and components to generate superior stopping power with the durability to survive extreme conditions for your early C4 Corvette. Big Brake kits combine high-tech looks with contemporary style that will appeal to the most discriminating Corvette enthusiast. Each kit is a complete bolt-on installation that is fully compatible with the OE master cylinder and ABS while retaining original track width. Fits 1984-1987 Corvettes with a minimum 17″ wheel. See online instructions for wheel fitment instructions.

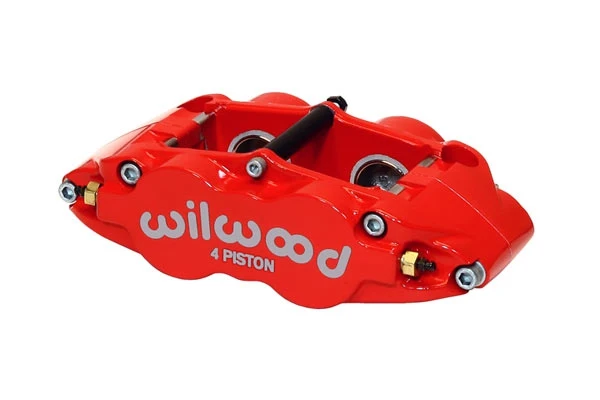

The SL4R machined billet four-piston radial mount calipers are volume matched to provide the correct front to rear bias when used with the SL6 Superlite front kit. Stainless steel pistons combat heat while stainless bridge wear plates eliminate pad gouging and extend caliper life. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens harmonic vibrations that contribute to pad squeal. BP series brake pads provide response and temperature range matched to the front kits.

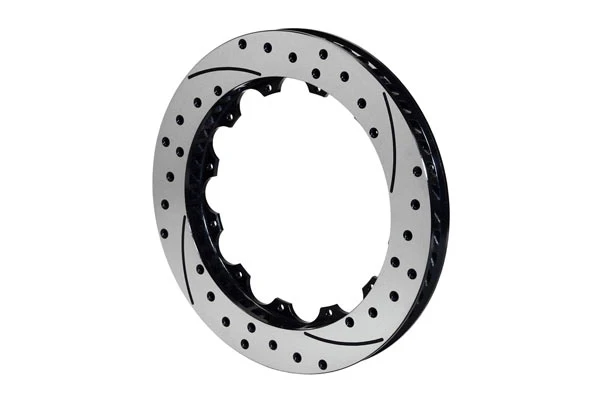

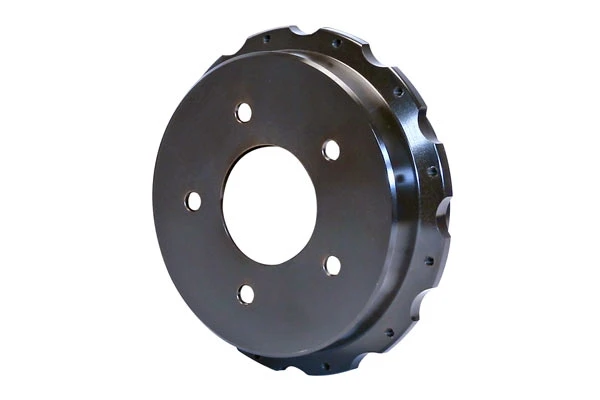

12.8″ SRP drilled and slotted two piece rotors provides additional balance and stopping power with that “Big Brake” look inside the wheel. Specially machined iron hats bolt to the rotors and contain the drums for operation with the OE parking brake assembly. These hats are plated in a black zinc finish that resists corrosion and completes the high-tech look.

Aluminum radial mount caliper brackets with premium grade hardware complete the total car package. Grade 8 strength or higher nuts, bolts, studs, washers, and alignment shims are included with each kit.

Note: Wilwood brake hoses are required for installation of all SL4 brake calipers on 1984-1996 Corvettes. See DCS # DB-1155 for the stainless brake hoses to complete installation.

Wilwood Item Number 140-11920-D, 140-11920-DR
