C1 Dash Main Wiring Harness w/Fuse Box 62

C1 Dash Main Wiring Harness w/Fuse Box 62

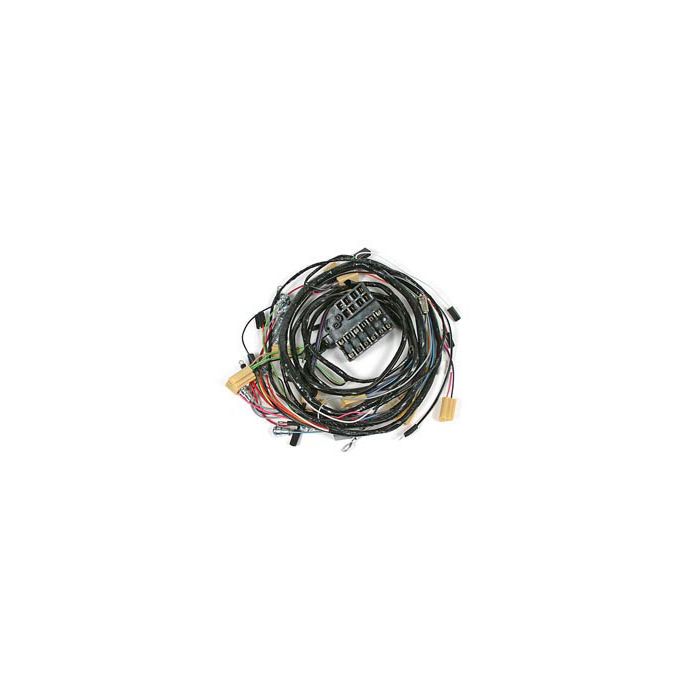

New reproduction 1962 Corvette dash main wiring harness. The dash/main wiring harness connects the horn relay, horns, parking lamp connections and headlight bucket wiring harness. Harness includes fuse block and connects to all gauges, gauge lights, headlight switch, radio, blower motor switch, cigarette lighter, clock, dimmer switch, door jamb switches, turn signal switch connector, rear lamp harness connector, brake light switch and turn signal flasher.

Note: Additional harness required to complete installation are: Headlight bucket extensions, Front park/turn signal extensions, courtesy lamp harness, regulator/generator harness and cigarette light lamp harness.

Factory harnesses originally supplied with your Corvette had a 10 year service life. How old is your Corvette’s wiring? 20, 30, maybe 40+ years. Original harnesses were made with copper strand housed in plastic. Over time the plastic deteriorates, becoming brittle and cracked, allowing moisture to get into the wire, which in turn causes the copper to begin corroding. Corroded wires lead to short circuits with the possibility of an electrical fire. Why gamble on the condition of an old harness to save a few bucks?

Dutch Corvette Supplies Products provides the Corvette owner with the most correct wiring harnesses available. All harnesses are hand assembled in the USA, guaranteed to fit. Harnesses feature correct wires that match factory color codes and gauge size, but are made with Cross Linked Polyethylene type GXL wire which is much more tolerant to heat than the original PVC type GPT wire. Connections are dip soldered (where applicable) to eliminate resistance loss and feature reproduction connectors and terminals. All harnesses are wrapped with correct non-adhesive or cloth woven tapes to assure a 100% factory appearance.

Artikelnummer: 104-0709 Categorieën: , ,
